商品番号： 143421
新品

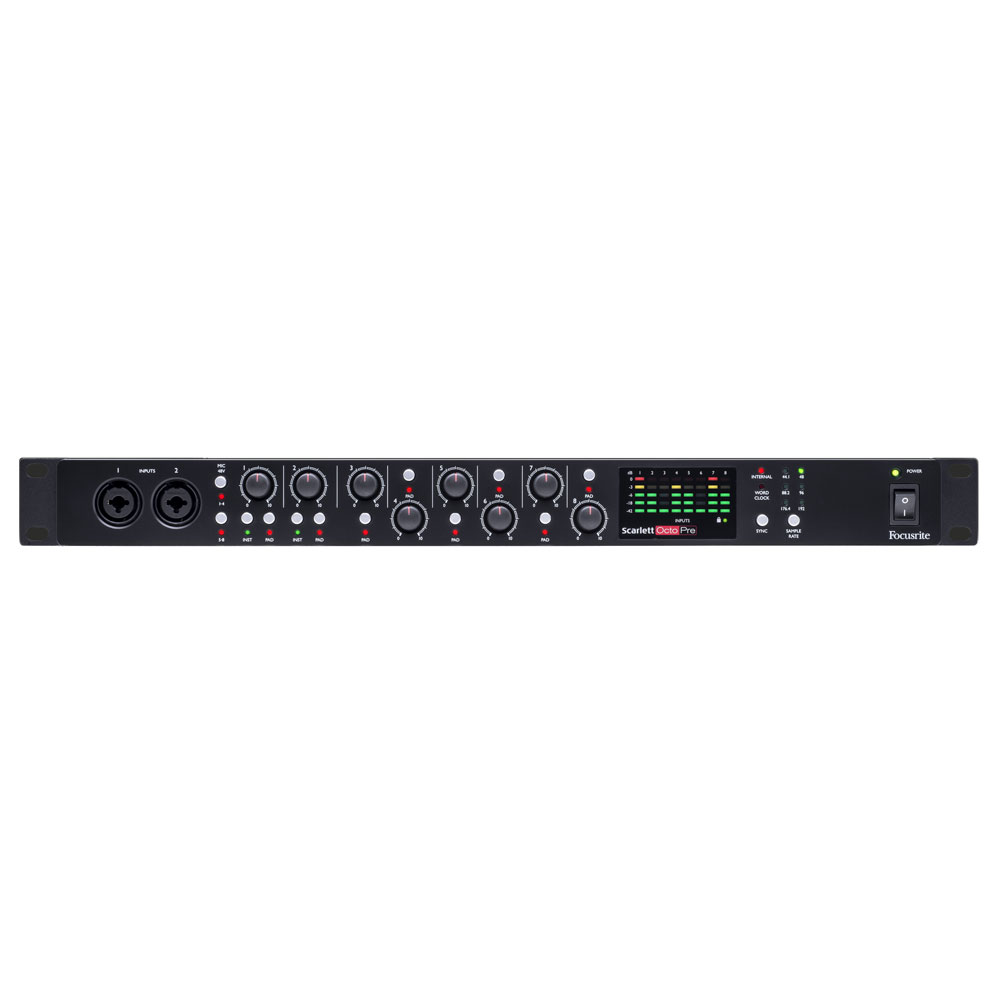

商品名 Focusrite Scarlett Octopre マイクプリアンプ
販売価格 71,500 円（税込）
この商品には会員価格があります。
送料弊社負担
在庫 メーカー確認
商品説明
Focusrite Scarlett Octopre マイクプリアンプ
Box Contents
Along with your Scarlett OctoPre you should have:
• AC mains cable with IEC connector
• 4 x self-adhesive feet – stick to underside of unit for table-top use
Printed on the inside of the box: • Getting Started Guide
• Bundle Code for on-line product registration*
*After registration， you will have access to downloads and licences for the following software: Softube Time and Tone bundle
Focusrite Red 2 and Red 3 plug-in suite
SCARLETT OCTOPRE TECHNICAL SPECIFICATIONS
Performance Specifications
(All performance figures are measured to the AES17 standard).
Sample Rates
Supported sample rates 44.1 kHz， 48 kHz， 88.2 kHz， 96 kHz， 176.4 kHz & 192 kHz
Microphone Inputs
Frequency Response 20 Hz to 20 kHz， +0.5/-1.5 dB
Dynamic Range 109 dB (A-weighted)
THD+N ＜0.001%
Noise EIN –127 dBu
Maximum input level (without PAD) 8 dBu
Maximum input level (with PAD) 16 dBu
Gain Range 50 dB
Input Impedance 3 kΩ
Line Inputs
Frequency Response 20 Hz to 20 kHz， +0.5/-1.5 dB
Dynamic Range 109 dB (A-weighted)
THD+N ＜0.002%
Maximum input level 22 dBu
Gain Range 50 dB
Input Impedance 49 kΩ
Instrument Inputs
Frequency Response 20 Hz to 20 kHz， +0.5/-1.5 dB
Dynamic Range 108 dB (A-weighted)
THD+N ＜0.01%
Maximum input level 13 dBu
Gain Range 50 dB
Input Impedance 1 MΩ
Line Outputs
THD+N ＜0.001%
Maximum Output Level (0 dBFS) ＞+16 dBu @ 0 dBFS， or＞21 dBu where ADAT output is not used
Output Impedance 136 Ω
Physical and Electrical Characteristics
Analogue Inputs
Connectors “Combo XLR” sockets on rear panel; for Line use 1⁄4” TRS jack， for Inst use 1⁄4” TS jack.
Mic/Line switching Automatic
Line/Instrument switching (Chs. 1 & 2 only) via front 2 x front panel switches
Phantom power 48 V， switchable Chs. 1-4， 5-8 in groups
Outputs
Analogue outputs 8 x balanced， on rear panel 1⁄4” TRS jack sockets
Other I/O
ADAT Output 4 x TOSLINK optical connectors: 8 channels at 44.1/48 kHz (RH port*) 8 channels at 88.2/96 kHz (Chs 1-4 RH port*， 5-8 LH port*) 4 channels at 176.2/192 kHz (Chs 1 & 2 RH port*， 3 & 4 LH port*)
Word clock output 2.5 V (correctly terminated with 75 ohms); BNC connector
Word clock input BNC connector: 5 V into 75 ohms
Weight and Dimensions
W xD xH 482 mm x 44.5 mm x 286 mm 19” x 1.75” x 11.26”
Weight 3.22 kg 7.10 lbs
JANコード：0815301008491
